Technical Specifications Of Our Ceiling Mount Ventilation Fan
The PAC-00210X25 is a premier, high-performance ceiling mount ventilation fan integrated with advanced LED lighting, meticulously engineered to meet the demanding requirements of modern residential environments. Delivering a robust and consistent 100 CFM airflow, this unit effectively maintains air quality and manages moisture in bathrooms up to 110 sq. ft., all while operating at an ultra-quiet 1.0 Sone sound level to ensure a peaceful home atmosphere. Beyond its powerful ventilation capabilities, the fan features an integrated 15W LED light offering 1000lm of brightness with 5CCT selectable color temperatures (ranging from 2700K to 5000K), allowing for seamless coordination with any interior decor.
| Specifications | Parameters |
|---|---|
| Model Number | PAC-00210X25 |
| Input Voltage | AC120V/60Hz |
| Motor Type | AC Motor |
| Airflow (CFM) | 100 |
| Wattage | 25W |
| Noise HVI Data | 1 sones |
| Noise Level | <1 sones |
| Product Dimensions | 12 1/3" * 11 1/3" * 7 1/5" |
| Color Temperature | 2700K-5000K |
| Lumen | 1000LM |
| CRI | Ra90 |
| Blade Material | PP |
| Housing Size | 9 1/10" * 9 1/10" |
| Certifications | ETL, HVI |
| Cuft (inner) | 4 |
| Remark | Integrated LED and CFM adjustable |
Advanced 5CCT LED Lighting System
Customizable Ambience: Features a built-in DIP switch located behind the grille, allowing for precise color temperature adjustments to meet diverse lighting requirements.

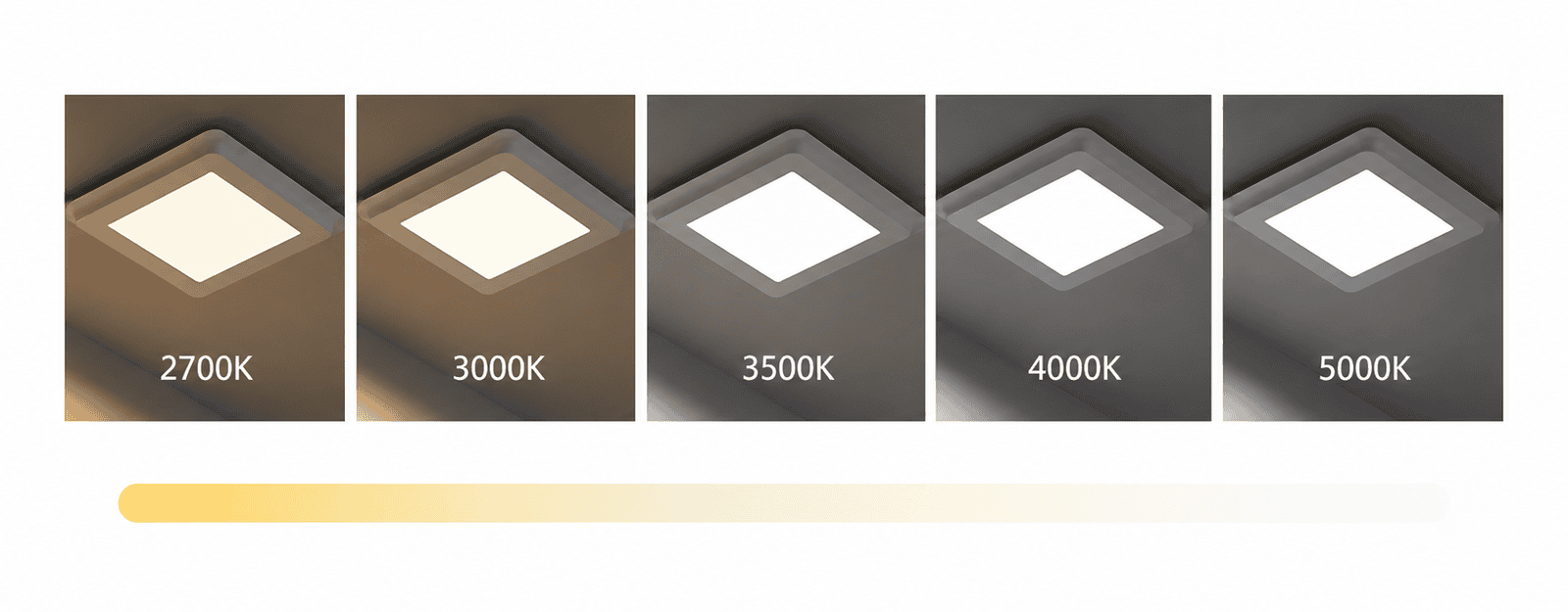

5-Level Selectable CCT: Offers five preset color temperature modes to suit any bathroom design: 2700K, 3000K, 3500K, 4000K, and 5000K.
Seamless Transition: Effortlessly adjust your quiet bathroom exhaust fan with light from a warm, cozy glow to a crisp, cool white light.
B2B Reliability: Designed for long-term performance, ensuring consistent color accuracy across multiple installations in large-scale projects.

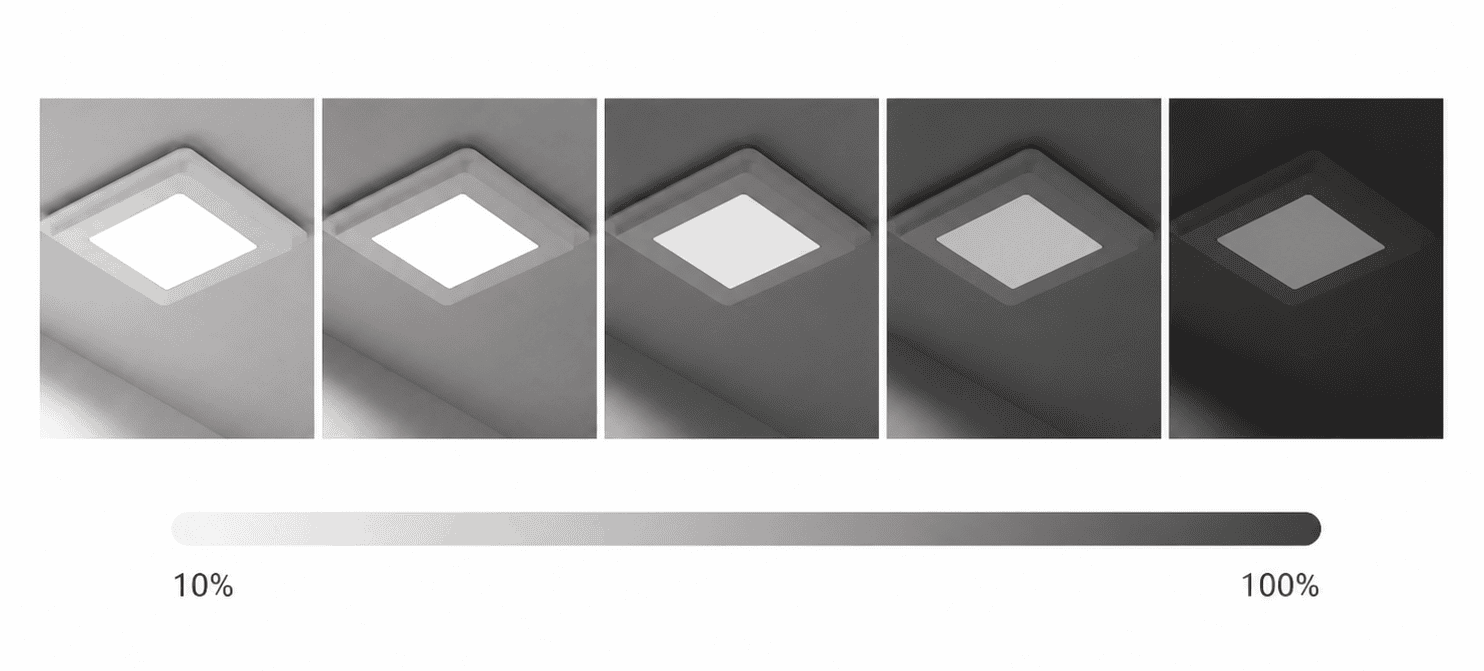

Dimmable LED Lighting Control
Triac Dimming Technology: This ceiling mount ventilation fan with light features an advanced dimmable system compatible with most standard Triac dimmers.
Seamless Brightness Adjustment: Offers a full range of brightness control from 10% to 100%, allowing users to create the ideal atmosphere effortlessly.
Stepless Dimming Experience: Enjoy a smooth, flicker-free transition between lighting levels to suit different times of day or specific tasks.

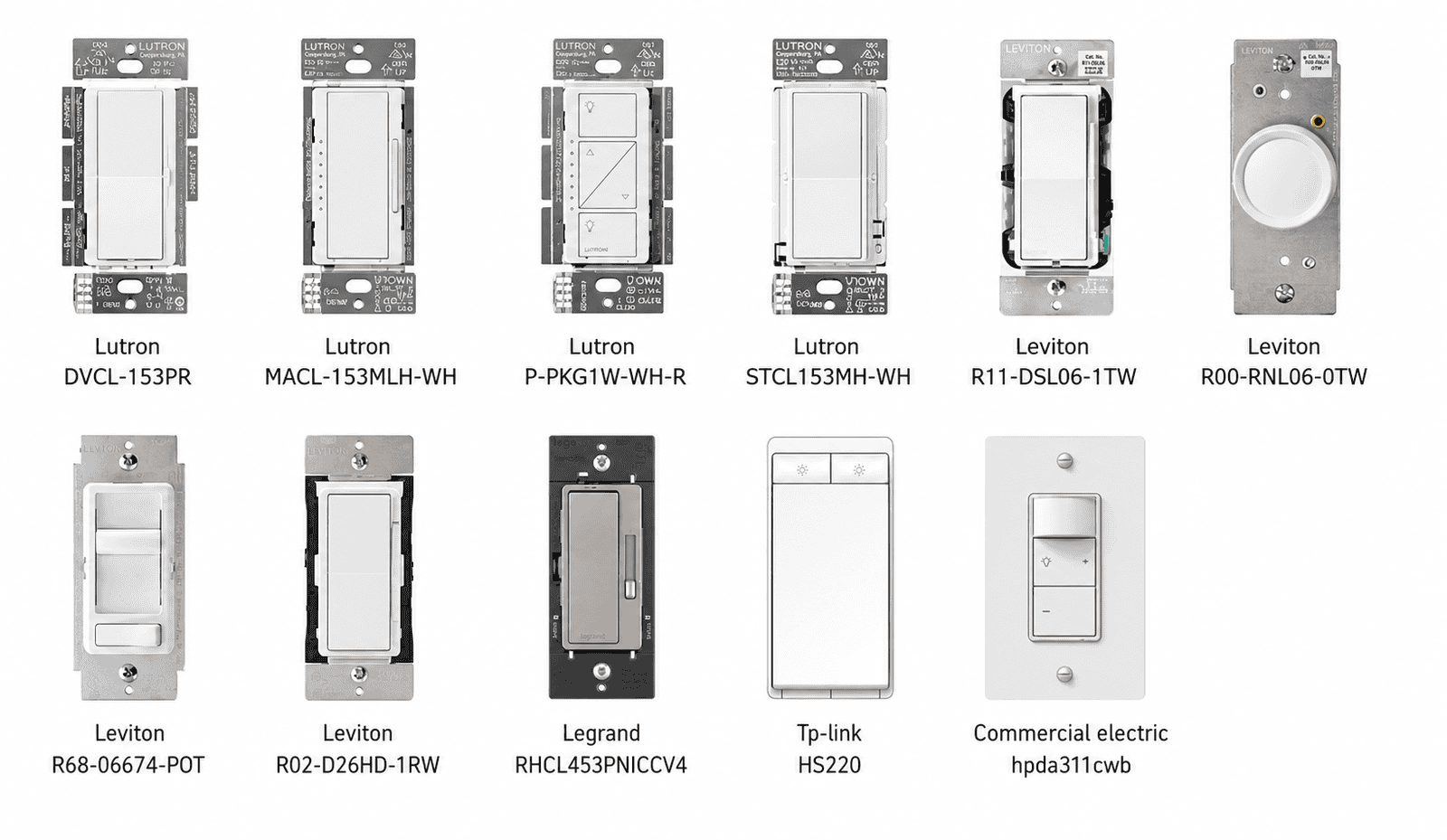

Universal Dimmer Compatibility Seamless Control with Leading Brands
Our ceiling mount ventilation fan with light is engineered for maximum flexibility, ensuring stable and flicker-free performance with a wide range of industry-standard dimmers. Compatible brands include:
Lutron: Optimized for smooth dimming transitions.
Leviton: Fully tested for reliable brightness control.
Legrand: Ensures consistent lighting quality across all levels.
TP-Link: Supports smart home integration for modern ventilation setups.

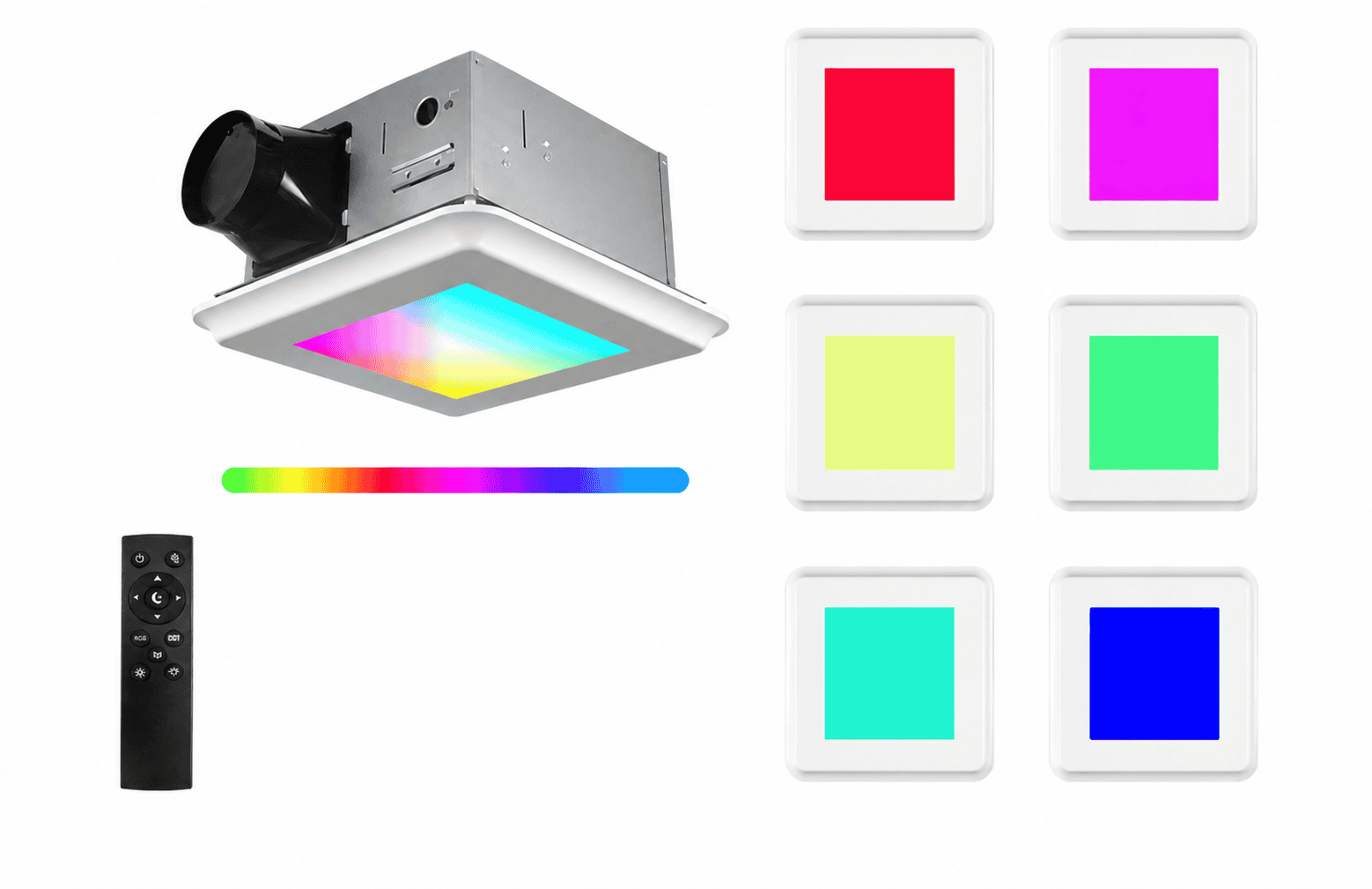

RGB Lighting System (Customizable Option)
Elevate the Ambiance with Dynamic Color Control
Integrated RGB Module: This ceiling mount ventilation fanwith light can be upgraded with an advanced RGB lighting module to provide a premium, modern aesthetic.
Remote-Controlled Customization: Easily adjust colors and lighting modes via a dedicated remote control to match various bathroom atmospheres.
Versatile Lighting Modes: Features multiple dynamic modes and a wide spectrum of colors, making it a perfect customizable solution for high-end B2B hospitality or residential projects.
Seamless Integration: The RGB system is designed to work perfectly alongside the fan’s high-performance ventilation without compromising its ultra-quiet operation.

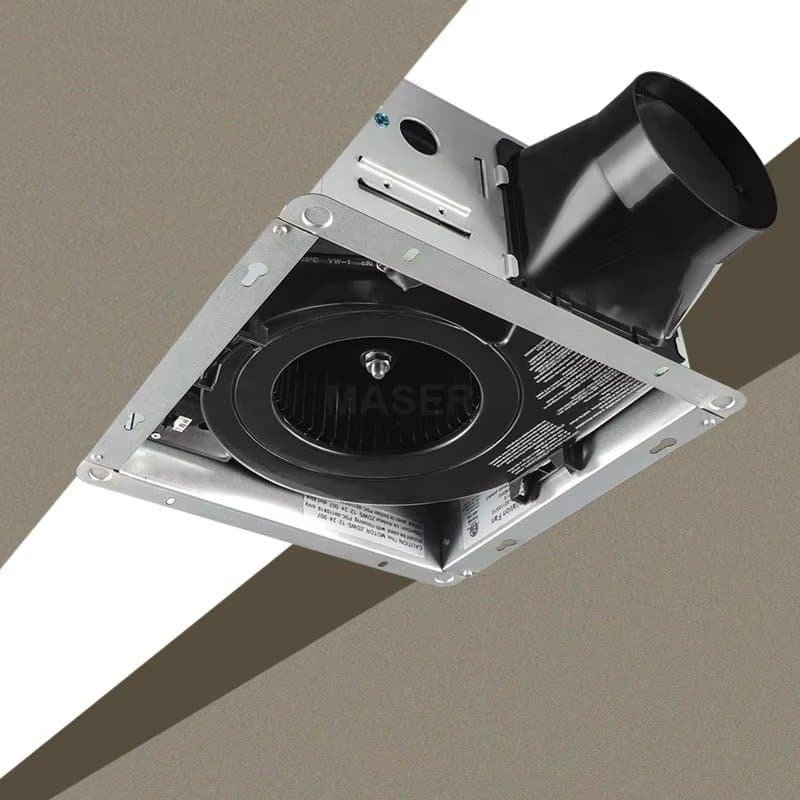

Verified Reliability: ETL & HVI Certified
We don’t just claim performance; we prove it. Every model is strictly ETL and HVI certified, ensuring 100% compliance with North American building codes. For engineers and developers, this means guaranteed data accuracy and a seamless inspection process on the job site.
Professional OEM & ODM Solutions for Global Brands
As a dedicated B2B Exhaust Fan factory , we offer comprehensive OEM and ODM services tailored to your brand’s specific needs. Whether it’s custom logo placement, specialized packaging, or technical modifications to meet local market requirements, our engineering team ensures your quiet exhaust fan order aligns perfectly with your brand identity. We empower wholesalers and distributors to build their own market presence with reliable, high-performance ventilation products.
Optional Smart Add-ons for Enhanced Efficiency
Advanced Motion Sensor Technology
- Motion Sensor Detection: 120° wide-angle coverage with 2.5 m height range. 4–6 m sensing distance; automatically activates when motion is detected.
- Auto On/Off: starts when motion is detected, stops when motion ends. User-adjustable delay timer options: 0, 10, 20, 30, 40, or 60 minutes.
Wholesale, OEM & Global Logistics Support
100% Quality Testing & Industry-Leading 3-Year Warranty
Quality is the lifeline of our brand. Each exhaust fan undergoes a series of rigorous professional tests before leaving the factory, including noise decibel testing, airflow stability checks, and long-term aging tests to ensure reliable performance under high-humidity conditions. To further support our global B2B partners, we offer a comprehensive 5-year warranty on all PDC series models. We stand behind our products so you can provide the best ventilation solutions to your clients with absolute confidence.
OEM/ODM Capabilities
As a ventilation fan factory, we provide comprehensive OEM and ODM solutions for global brands. From custom logo silk-printing and specialized packaging to advanced technical modifications, our R&D team works closely with you to bring your vision to life.
Custom Branding: Logo placement on product housing, grilles, and control panels.
Tailored Packaging: Fully customized box designs and multi-language instruction manuals.
Technical ODM: Modifications in airflow (CFM), noise levels (Sones), or motor specifications to meet local market standards.
Quality Assurance: Each OEM order undergoes the same rigorous 100% testing protocol as our standard lines.
Efficient Global Logistics & On-Time Delivery
With streamlined customs processing and robust protective packaging, we ensure your ceiling exhaust fan with humidity sensor orders arrive safely and on schedule, minimizing lead times for your large-scale projects and inventory replenishment.
FAQ
This ceiling mount ventilation fan with light operates at a ultra-quiet level of only 1.0 Sone. It is specifically engineered to provide powerful yet near-silent ventilation, making it ideal for creating a peaceful home environment in residential bathrooms.
Yes, a 100 CFM airflow is robust and highly effective for bathrooms up to 110 sq. ft.. It efficiently manages moisture and maintains air quality, which is crucial for preventing mold and long-term damage in standard residential settings.
Absolutely. The integrated 15W LED light features 5CCT selectable color temperatures ranging from 2700K to 5000K. This allows users to easily customize the lighting to match different design preferences and lighting needs.
The fan is designed with a compact housing size (9 1/10″ * 9 1/10″) that fits 95% of standard US vent sizes. This universal fit makes the PAC-00210X25 an excellent choice for both new construction and efficient remodeling upgrades.
